2025-02-Algorithm/reviews/R8a.md

Review 7

• Hajin Ju, 2024062806

Problem 1

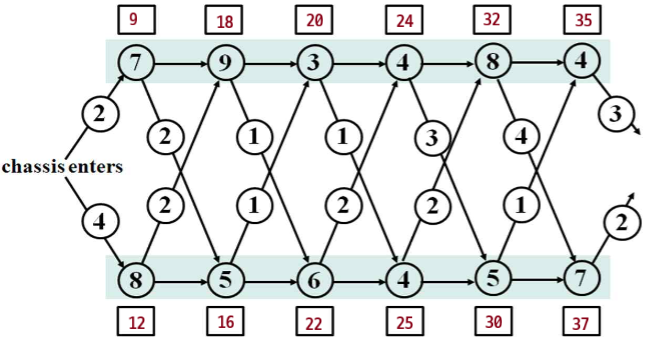

Fill in the blanks in the following assembly-line scheduling example.

Solution 1

table $s$

s	1	2	3	4	5	6
1	9	18	20	24	32	35
2	12	16	22	25	30	37

table $l$

l	1	2	3	4	5	6
1	-	1	2	1	1	2
2	-	1	2	1	2	2

\begin{align*}s^* &= 38\\l^* &= 1\end{align*}

Problem 2

Fill in the blanks in the following pseudocode for assembly-line scheduling

Solution 2

FASTEST-WAY(a, t, e, x, n)
    s[1][1] = e[1] + a[1][1]
    s[2][1] = e[2] + a[2][1]
    for j = 2 to n
        do
        if s[1][j-1] + a[1][j] <= s[2][j-1] + t[2][j-1] + a[1][j]
            then s[1][j] = s[1][j-1] + a[1][j]
                l[1][j] = 1
            else s[1][j] = s[2][j-1] + t[2][j-1] + a[1][j]
                l[1][j] = 2

        if s[2][j-1] <= s[1][j-1] + t[1][j-1]
            then s[2][j] = s[2][j-1] + a[2][j]
                l[2][j] = 2
            else s[2][j] = s[1][j-1] + t[1][j-1] + a[2][j]
                l[2][j] = 1
    if s[1][n] + x[1] <= s[2][n] + x[2]
        then s* = s[1][n] + x[1]
            l* = 1
        else s* = s[2][n] + x[2]
            l* = 2
